Semi-welded cassettes DR & T models

CompletePlate


T20-BW3-316-0.6-1234-Ch-NBRP/C-NBRP/C

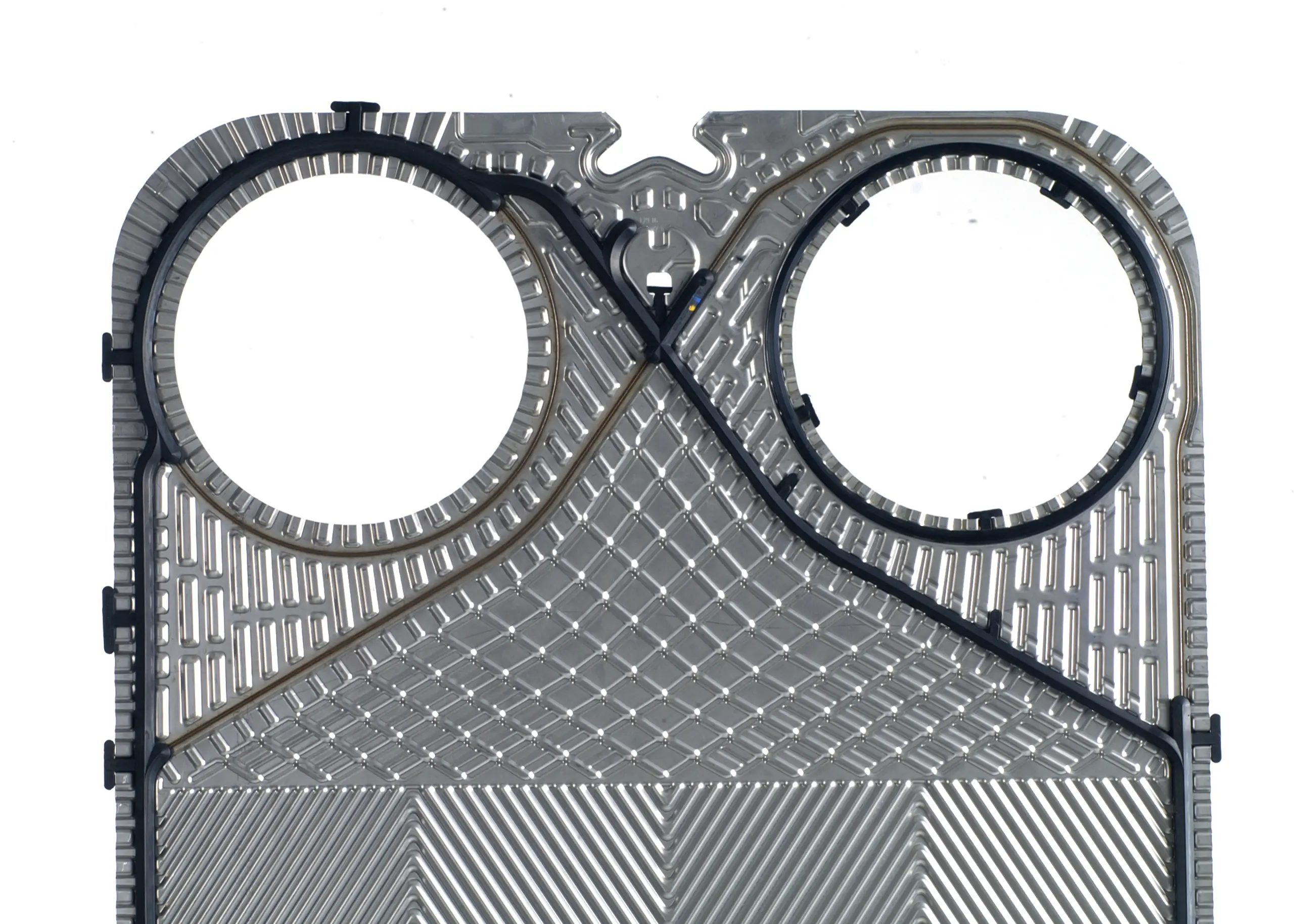

Representative image. Actual product may differ.

CompletePlate


T20-BW3-316-0.6-1234-Ch-NBRP/C-NBRP/C

Technical details

Design function
Channel
Hole code
1234
Plate metallic material
ALLOY 316
Plate orientation
A, B
Plate pattern
T20-BW3
Plate surface treatment back side
Unpolished
Plate surface treatment front side
Unpolished
Plate thickness
0.6
Plate type
T20-BW
Ring gasket material
NBRP
Traceability food
No
Channel gasket side
Front
Pattern name
Mix-Theta
Complete plate type
Channel cassette
Net weight
9.582 kg
